จำหน่าย Control Module for Bell รุ่น FCM-1 ยี่ห้อ Notifier ในราคาปลีก-ส่ง ติดต่อ บริษัท ไฮไฟร์โพรเทคชั่ั่น แอนด์ซีเคียวรริตี้ จำกกัด สายด่วน 02-125-7009 ขายส่งอุุปกรณ์ ไฟอลาม ทุกชนิด
Control Module For Alarm & Telephone Zone |
สั่งซื้อสินค้าหรือขอใบเสนอราคา สายด่วน 02-125-7009 Line ID: @hifire หรือ E-mail: hifire.protect@gmail.com |
NOTIFIRE by Honeywell FCM-1 Intelligent Addressable Control Module for audio devices, UL/FM, USA

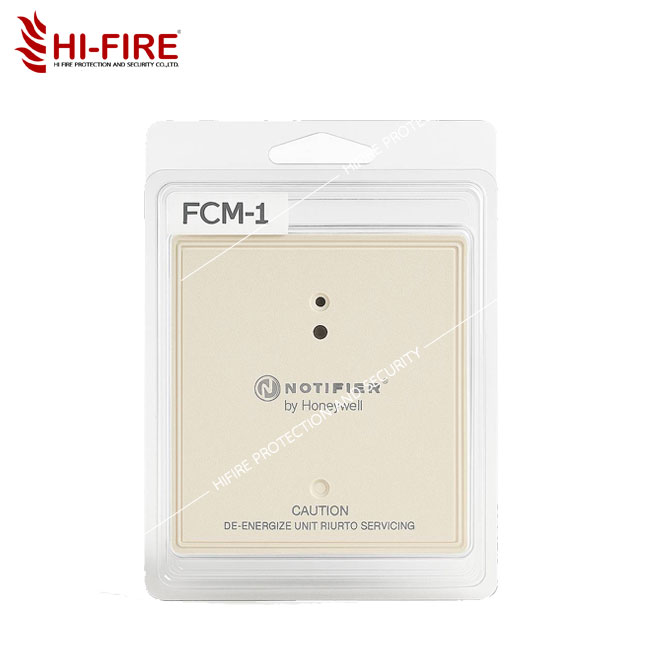

FCM-1 Control Module
สำหรับต่อเข้าตู้ไฟร์อลาม ระบบ Addressable (Multiplex) ยี่ห้อ Notifire หรือ System Sensor เท่านั้น
มาตรฐาน UL/FM ผลิตภัณฑ์สหรัฐอเมริกา
FCM-1 (A) Addressable Control Module provides Notifire intelligent fire alarm control panels a acircuit for Notification Appliances (horns,strobes,speakers,etc). Addressability allows the FCM-1(A) to be activated, either manually or through panel programming, on a select (zone or area of coverage) basis.
It is configured for a single Class B (Style Y) or Class A (Style Z) Notification Appliance Circuit.
The face plate is made of off-white heat-resistant plastic Controls include two rotary switches for direct-dile entry of ddress(01-159)
Application: Used to switch 24VDC audible/visual power, high-level audio (speakers).
Specification: Nominal operating voltage: 15 to 32VDC Maximum SLC current draw: 6.5mA (LED on) Dimensions: H 4.675"x W 4.275" x D 1.4" (Mounts to a 4" square by 2.125"deep box.) |
|
