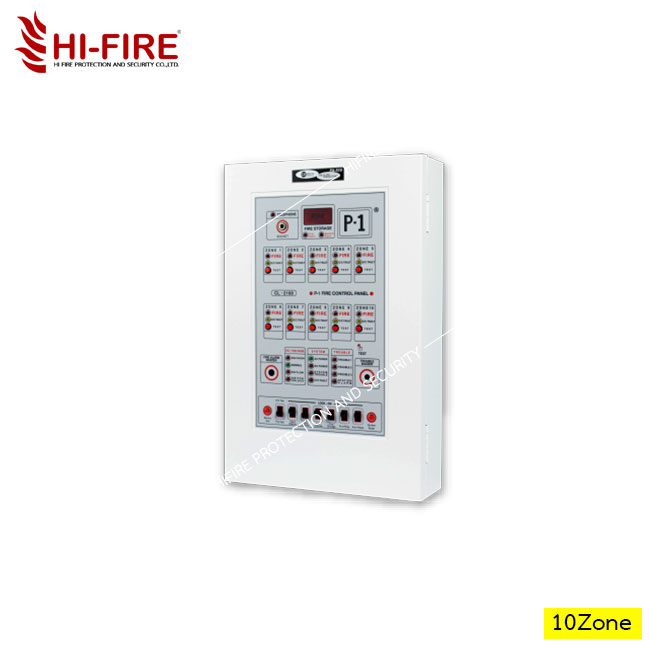

Fire Alarm Control Panel Model FA-510 |
สั่งสินค้าหรือขอใบเสนอราคา สายด่วน 02-125-7009 Line ID: @hifire หรือ E-mail hifire.protect@gmail.com |
ตู้คอนโทรล หรือ ตู้ควบคุมสัญญาณแจ้งเหตุเพลิงไหม้ในอาคาร ขนาด 5 โซนและ 10 โซน พร้อมแบตเตอรี่ 24 VDC ใน 1 โซน สามารถต่อกับอุปกรณ์ตรวจจับควันไฟ Smoke Detector ได้ 25 ตัว และอุปกรณ์ ตรวจจับความร้อน Heat Detector ได้ไม่จำกัดจำนวน มีแบตเตอรี่ 24 โวลท์ มีฟังก์ชั่นตรวจเช็คสายและอุปกรณ์ได้ |
General Fire control panels FA-500 series 5 and 10 zones, produce alarms to alert the control panel operator and the residents when they receive a fire signal from detector. They consist of two different display modes. id est individual zone lamps and trouble alarm lamps which can connect with the graphic display and annunciator. |
Features * Zoned visual red alarm LED and red FIRE indicators * Zoned visual yellow O/C fault LED. * Continuous signal duning alarm * Built-in battery charfer. * Low/No Power and battery detection. * Automatic loading and testing of battery. * Battery lead recersal protection * Zone fire test and zobe O/C fault test. * Fire storage (Double check of the fire signal) * Fire alarm and trouble buzzer. |
Electrical * Model: FA-505 (5 Zone) , FA-510 (10 Zone) * Standard: Replay CNS.8877.Z2044 * Primary Power Source: 220 VAC, 50/60 Hz * Secondary Power Source: 24 VDC. (Battery 2.1 Ah) * Zone Power: 24 VDC. (18 VDC - 30 VDC) * Zone EOL: 10K EOL (1/4-1/2W Resistor) * Bell Power: 24 VDC. (1.0 amps) * Panel Color: White & lvory * Dimensions (mm): FA-505: 300 x 380 x 90 |
SYSTEM CONTROL AND INDICATOR ON BOARD INDICATING LED 1 DIGITAL VOL TMETER : Indicating regualr power supply (Normal: 20 VDC - 30 VDC) 2 SWITCH UNLOCK : Red LED is flashing once 1 sec. 3 AC POWER : Green LED is Lit: The AC power connected to the control panel. 4 DC POWER : The AC power failure and the DC power connected to the control panel 5 SYSTEM TROUBLE : Red LED is Lit. The fuse fault of main board. 6 O/C FAULT : Red LED is Lit. Indicating zone open circuit fault 7 TROUBLE : Red LED is Lit. Indicating tank water below level or other trouble. 8 STATION ALARM : Red LED is Lit. The manual pull station are activated. 9 TELEPHONE : Red LED is Lit. Indicating The phone call. 10 FIRE : Red LED is flashing. Fire alarm! 11 ZONE FIRE : Red LED is Lit. Indicating the zone has detected the fire. 12 ZONE O/C FAULT : Yellow LED is Lit. Indicating the zone open circuit fault. 13 ALARM BUZZER :85dB@ 1m (min.) 14 TROUBLE BUZZER : Zone open circuit: once 1 sec. Telephone & trouble alarm: always
SWITCH OPERATION: UP-SETTINGG, DOWN-CLOSE 15 BATTERY TEST : Pressing the button will test the battery 16 FIRE TEST : Down the switch to test zone fire citcuit (Test mode) 17 O/C TEST : Up the switch to test zone open circuit (Test mode) 18 FAULT SILENCE : Unlock the switch to silence TROUBLE BUZZER. 19 MAIN SILENCE : Unlock the switch to silence FIRE ALARM BUZZER. 20 AUX SILENCE : Unlock the switch will cause all sector sonuder outputs to switch off. 21 FIRE STORAGE : Unlock the switch disable to double check the fire alarm signal. 22 AUX RELAY : Unlock the switch to control the relay NC or NO output. 23 AUTO RESET : Unlock the switch, auto reset to standby mode. 24 SYSTEM RESET : Pressing the button will reset to standby mode. 25 ZONE TEST : Pressing the button will test zones fire/open circuit (in test mode) |
|
